You can use a step drill bit to cut a variety of hole diameters in sheet metal, but should you use an assortment of other bits instead? Discover the advantages and disadvantages of step drill bits to understand the strengths and limitations of this tool.

Advantages

Step drill bits are versatile tools that can drill, grind, chamfer, and cut. This tool drills quality holes with smooth edges in non-ferrous metals, steel, aluminum, and more.

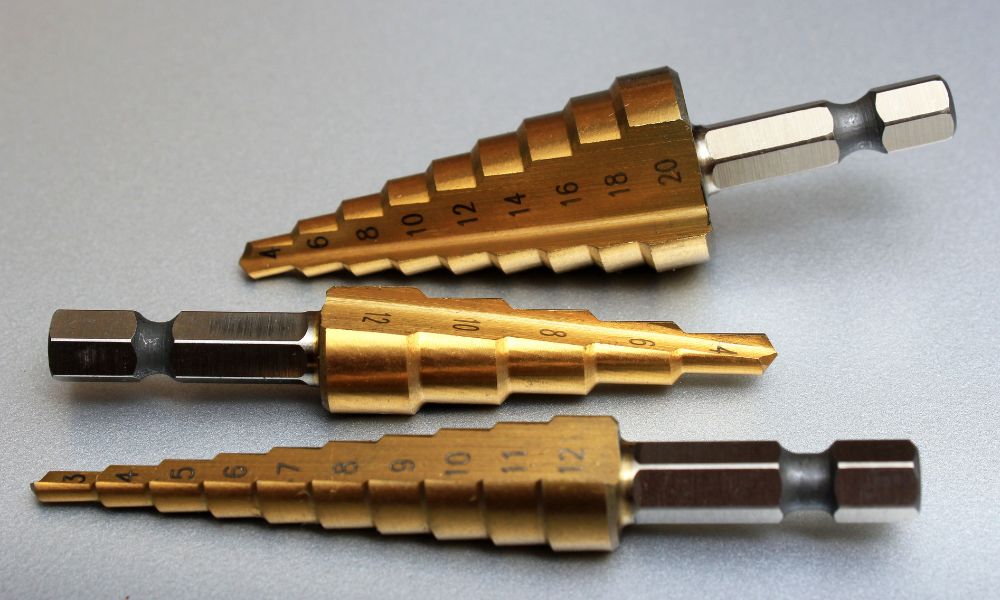

A step drill bit can save you time since you won’t need to switch out drill bits. The conical shape of the bit comes from the steps of different diameters. You can drill shallow holes to create openings of smaller diameters or drill deeper into the material to make larger holes.

Disadvantages

Perhaps the biggest disadvantage of step drill bits is that they’re more expensive than many other drill bits. You’ll have to calculate whether the upfront cost is worth the capabilities of these bits.

Another issue is that it’s difficult to resharpen a step drill bit once it becomes dull; you’ll want to hire a professional sharpening service or become adept at the process yourself. Sharpening a standard HSS drill bit is easier, so keep that in mind when deciding on the bits you’ll want to use.

Additional Considerations

After learning the advantages and disadvantages of step drill bits, it’s easy to understand why a step drill bit is one of the drill bits that every DIYer needs. Be sure to apply the right step drill bit to your project.

The material type and desired hole size will influence the step drill bit you should use. You can opt for a standard high-speed steel bit for softer metals like aluminum, but you’ll want a premium bit, such as cobalt, titanium, or carbide, for harder materials.

The material should also be thinner than the bit’s step depth. If the metal sheet is thicker than the step’s depth, you will create a wider hole than intended. However, if the sheet is less than twice as thick as the step, you can drill halfway through the material on one side, then finish drilling the hole on the other.
